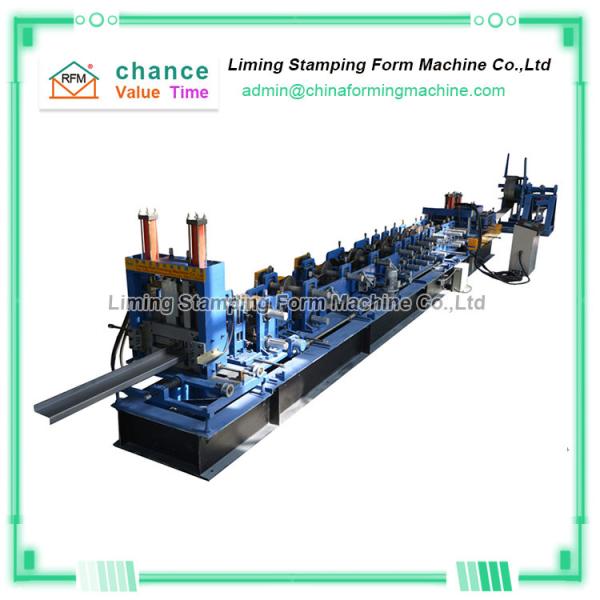

High Precision C And Z Interchangeable Purlin Forming Machine
"High precision C and Z interchangeable purlin forming machine" uses Japan's Mitsubishi FX5U-64MT industrial control computer, Mitsubishi GT1050-QBBD touch screen, circuit breakers, AC contactors and products from Japan's Fuji company. The relay is a 4-way PLC output amplifier board.
"High precision C and Z interchangeable purlin forming machine"with other manufacturers' CZ purlin steel forming machines:
All the rollers of the "High precision C and Z interchangeable purlin forming machine"are made of Cr12MoVi, which has excellent wear resistance.
After the"High precision C and Z interchangeable purlin forming machine" is heat treated, it is processed in two directions, and the center is always the same.
"High precision C and Z interchangeable purlin forming machine" is easy to change specifications. The maximum thickness of the movable wall panel is 10 cm, which is the thickness of the disposable integral panel.
"High precision C and Z interchangeable purlin forming machine"has strong rigidity, and can compress 4.0 mm thick Q235 steel belt and 3.0 mm thick Q235 steel belt.
Technical parameters of High Precision C And Z Interchangeable Purlin Forming Machine
| Suitable to process |
Glazed Steel Coil |
| Width of the coil |
300mm |
| Rollers |
13rows |
| Dimensions |
About 9*1.9*1.3m |
| Power |
20kw |
| Thickness of the plate |
1.5-3mm |
| Productivity |
5--10m/min |
| Diameter of the roller |
φ80mm |
| Weight |
About 7T |
| Voltage |
380V 50Hz |
| Uncoiler |
one setUnpowered rack |
| Feeding platform |
one set |
| Rolling material |
|
| Gcr15 |
| Rolling galvanization thickness |
0.05 mm |
| Shearing machine |
one set |
| Material of the cutting blade |
Cr12 |
| Hydraulic system |
one set |
| PLC |
one set |
| Processing precision |
Processing precision |
