High-precision metal coil cutting line, good sales in the industry

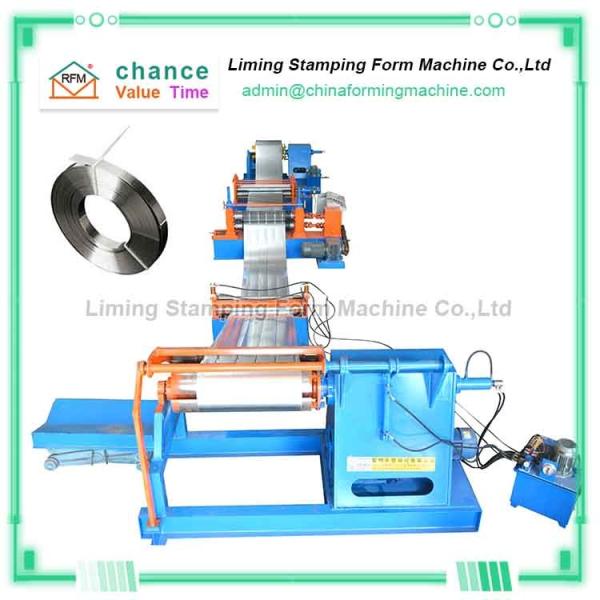

Metal coil cutting line is a production line used to divide large metal coils into small metal coils of different widths
The metal coil cutting line consists of an uncoiling device, a leveling device, a slitting device, a waste collection device, a pressing device, and a winding device. The entire production line is controlled by a digital programming PLC, which truly realizes human-computer interaction, which can help you save a lot of manpower.
Technical Parameters of High-precision metal coil cutting line, good sales in the industry
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 220V/AS*1.60M |
| 4 | Thickness of sheet(mm) | 0.3mm-2.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | As your drawing |
| 7 | The size of the roll forming machine | 20M*2M*1.60M |
| 8 | Speed | 15m-30m/min |
| 9 | Diameter of shaft | 103mm |
| 10 | Weight Of the Machine | 7500KGS-9500KGS |
| 11 | Material of rollers | #45 steel quenched and chromed |
| 12 | Motor Brand | Popular brank made in China |
| 13 | PLC | Siemens or Delta or Mitsubishi |
| 14 | Total power(kw) | 30 KW |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 26kw |
We develop the advantages of metal coil cutting lines.
PLC digital control, one person can complete the entire production process, only need to fill in the parameters to automatically produce
The uncoiling device adopts a hydraulic uncoiling machine to carry metal coils of different weights. The uncoiling speed is consistent with the production speed. The fixed coils are not easy to fall off, which can help you achieve safe and efficient production.
The leveling device makes the unfolded metal coil flat to facilitate slitting and avoid errors.
Slitting device with adjustable slitting distance can help you produce metal coils of different widths. The splitting blades are made of Gr12 material. High hardness, good toughness and long service life can bring you long-term benefits.
Rewinding device, equipped with a rewinding press arm to divide the metal coil, which is convenient for later disassembly and packaging
